Cast Steel Bolted Bonnet Valves


Category: Gate and Check Valves

VTM offers a comprehensive range of high-Performance API Approved Gate & Swing Check Valves in sizes upto 12" (DN 300) and in ASME classes from 150 to 600. These valves are available in a combination of Materials, Sizes, Pressure Classes, End Connections, etc to suit a wide spectrum of Applications, most demanding Service Conditions & high pressure and high temperature conditions, proven over years of service in conventional thermal and nuclear power plants as well as other steam services around the world.



Products

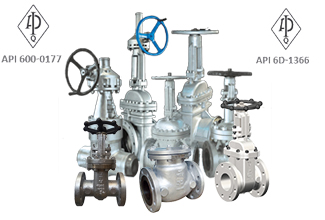

Product line: Cast Steel Bolted Bonnet Valves

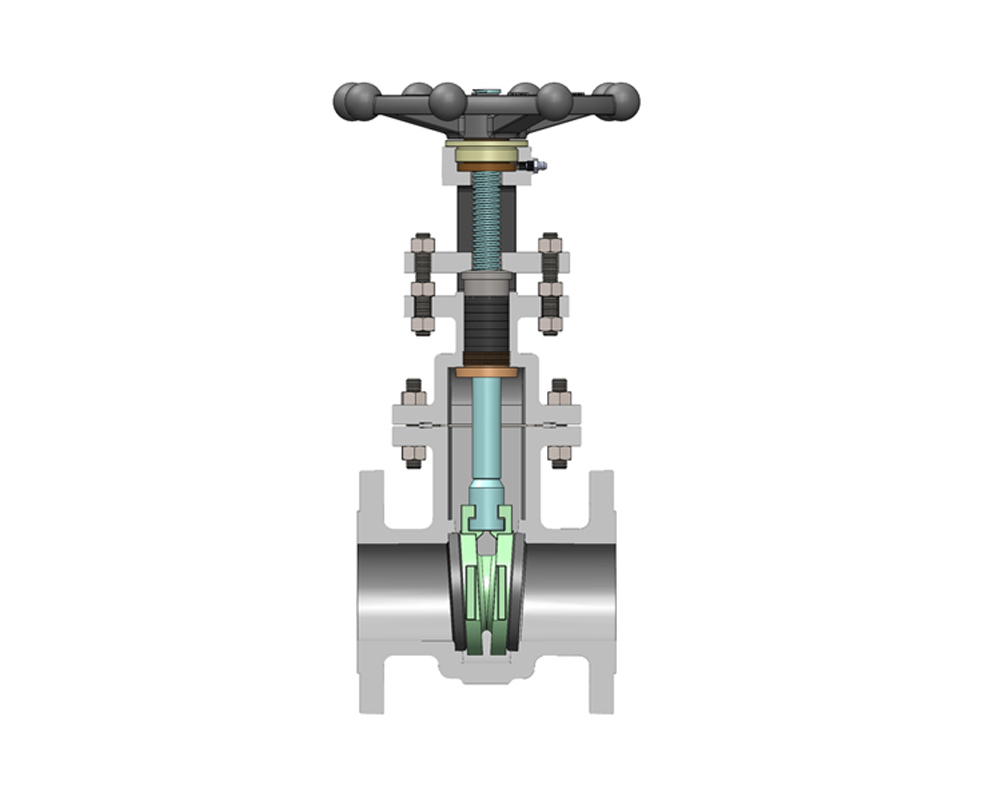

Cast Carbon Steel Gate Valves API 600


Size Range(s):
40-300 MM (1.1/2’’-12’’)

Pressure Rating:
#150 - #600

End Connections:
Flanged Ends / Butt-Weld Ends

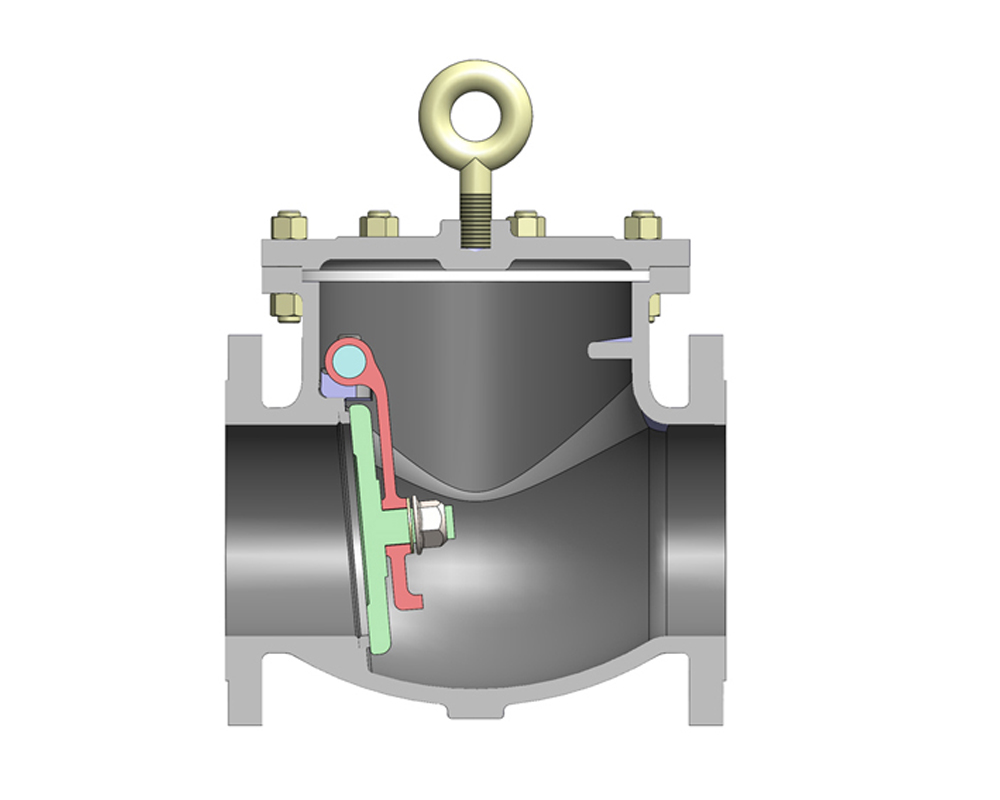

Cast Carbon Steel Swing Check Valves API 6D


Size Range(s):
40-300 MM (1.1/2’’-12’’)

Pressure Rating:
#150 / #300

End Connections:
Flanged Ends / Butt-Weld Ends

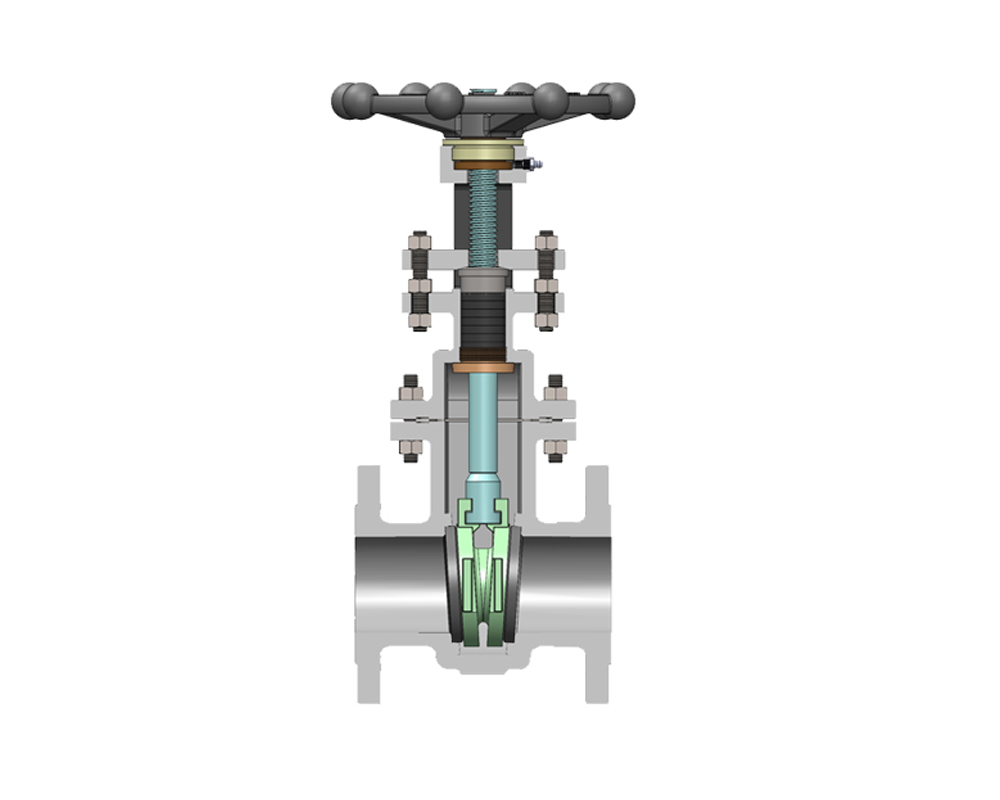

Cast Stainless Steel Gate Valves API 600


Size Range(s):
40-600 MM (1.1/2’’-24’’)

Pressure Rating:
#150/ #300

End Connections:
Flanged Ends/ Butt-Weld Ends

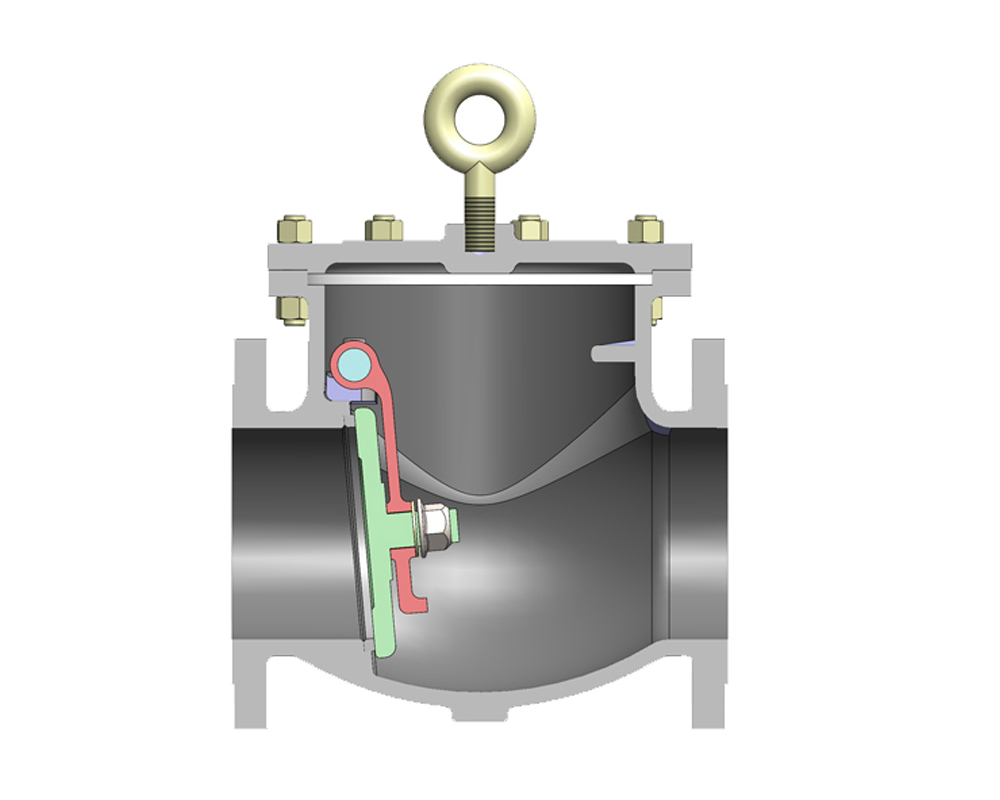

Cast Stainless Steel Swing Check Valves API 6D


Size Range(s):
40-300 MM (1.1/2’’-12’’)

Pressure Rating:
#150 / #300

End Connections:
Flanged Ends / Butt-Weld Ends
