General Purpose Ball Valves


Category: Ball Valves

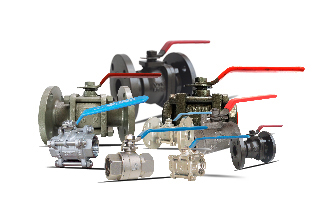

VTM offers a wide range of dependable yet economical Ball Valves. These general purpose ball valves come in sizes 1/4" (DN 6) to 8" (DN 200) and pressure ratings upto PN 40. Mirror polished balls and high Integrity PTFE seats and Seals are standard on all VTM general Purpose Ball Valves, thus have lower sealing and Operating torques and are much longer lasting.







Products

Product line: General Purpose Ball Valves


Cast Iron Ball Valves


Size Range(s):
10-150 MM (3/8’’-6’’)

Pressure Rating:
PN16

End Connections:
Screwed Ends/Flanged Ends

Cast Iron 2 Pc. Ball Valves


Size Range(s):
15-200 MM (1/2’’-8’’)

Pressure Rating:
PN16

End Connections:
Flanged Ends

Cast Carbon Steel 3 Pc. Ball Valves


Size Range(s):
15-100 MM (1/2’’-4’’)

Pressure Rating:
#150

End Connections:
Flanged Ends

Cast Carbon Steel 2 Pc. Ball Valves


Size Range(s):
15-200 MM (1/2’’-8’’)

Pressure Rating:
#150

End Connections:
Flanged Ends


Stainless Steel 2 Pc. Ball Valves


Size Range(s):
6-100 MM (1/4’’-4’’)

Pressure Rating:
PN40

End Connections:
Screwed Ends


Stainless Steel 3 Pc. Ball Valves


Size Range(s):
15-100 MM (1/2’’-4’’)

Pressure Rating:
#150

End Connections:
Flanged Ends


Stainless Steel 3 Pc. Ball Valves


Size Range(s):
15-50 MM (1/2’’-2’’)

Pressure Rating:
PN40

End Connections:
Screwed Ends, Socket Weld Ends & Butt-Weld Ends

Cast Carbon Steel 3 Pc. Ball Valves


Size Range(s):
15-50 MM (1/2’’-2’’)

Pressure Rating:
PN40

End Connections:
Screwed Ends/ Socket Weld Ends/ Butt-Weld Ends
