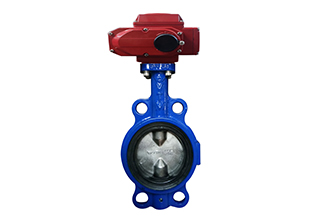

Motorized Modulating Type Butterfly Valves

Series: VA-18 IM & 19 IM

Category: Pre-Actuated Valve Packages

Features and Benefits

  • Top Flange drilled to fit ISO 5211 dimensions.
  • Robust design of the Actuators
  • Heavy Duty One Piece wafer Type Body Design
  • Extended Neck Serves for 50mm (2’’) piping insulation from line media.
  • Semi Lugged Body with Guiding Holes for better alignment
  • Blow Out Proof Stem with Primary & Secondary Sealing.
  • Both Single & Double Piece Stem Design with heavy duty square grooved Disc & Stem Connections.
  • Moulded O-Ring seals to serve as flange gaskets.
  • Actuator is 35% Lighter in weight & Size comparatively others Make
  • Fusion Bonded Epoxy (Lead Free) Coatings on Body.


Product catalogs

Motorized Modulating Type Butterfly Valves
7950 KB
Document No: VAV-C-1064 - VA-18I-IM & 19I-IM
